StarTech.com USB C Multiport Adapter - USB-C Mini Travel Dock w/ 4K HDMI or 1080p VGA - 3x USB 3.0 Hub, SD, GbE, Audio, 100W PD Pass-Through - Portable Docking Station for Laptop/Tablet

StarTech.com - DKT30CHVAUSP

USB-C Mini Dock | 100W PD Passthrough | USB-C & A Ports | SD Card Reader | Mac, Windows® & ChromeOS | Android OS | GbE

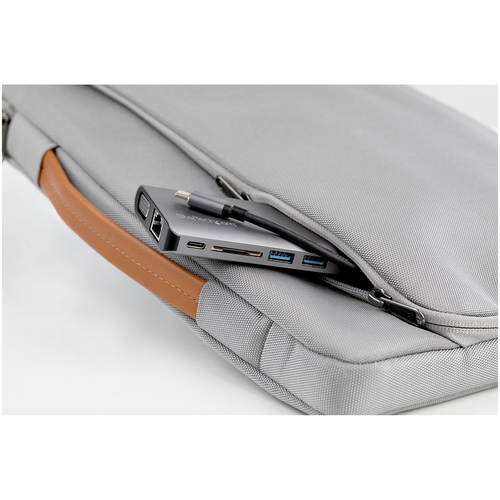

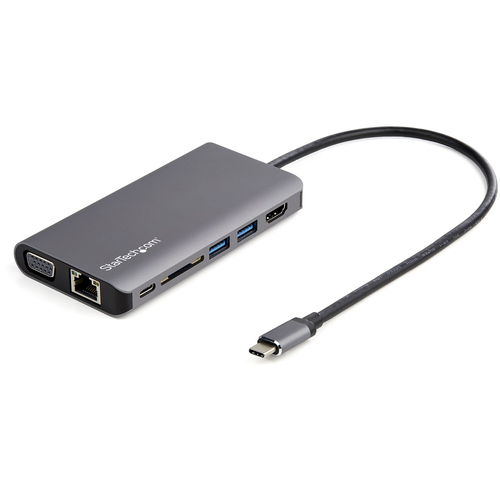

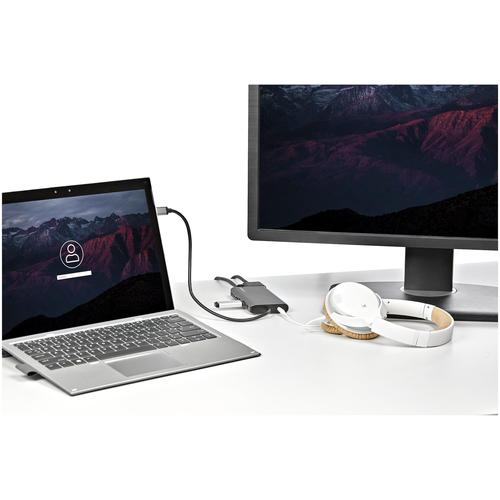

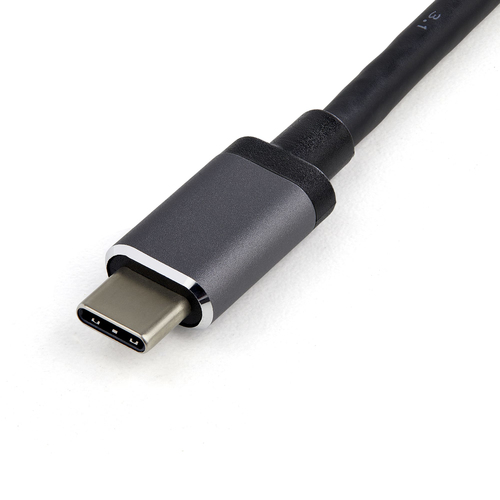

This USB-C multiport adapter turns your MacBook Pro, USB-C™ laptop, Chromebook, or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm, Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.

To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.

Two Video Output Options with HDMI or VGA

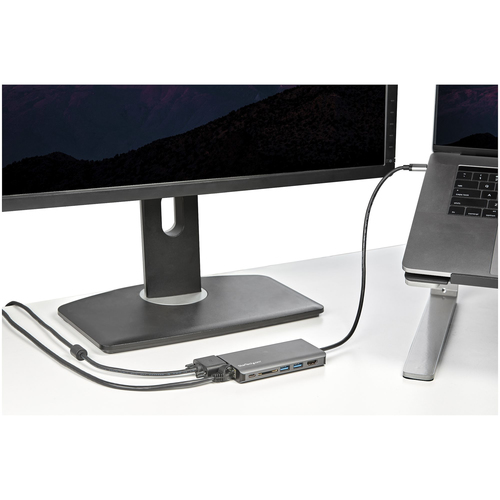

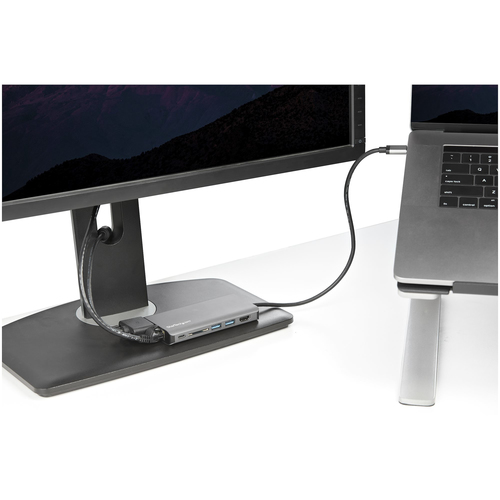

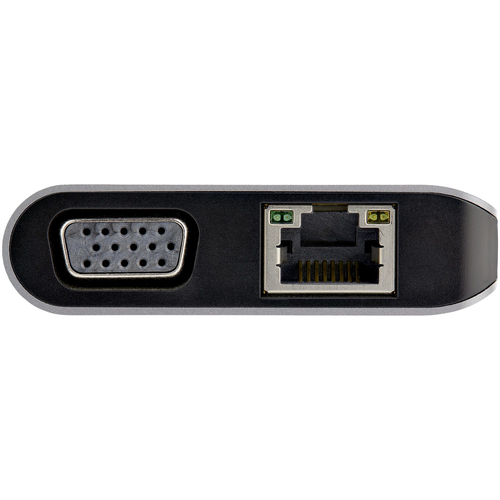

This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.

Power & Charge with 100W Power Delivery 3.0

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop's own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.

All the Essential Ports with USB

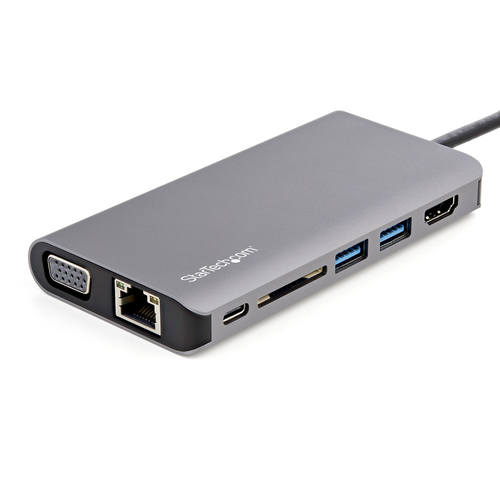

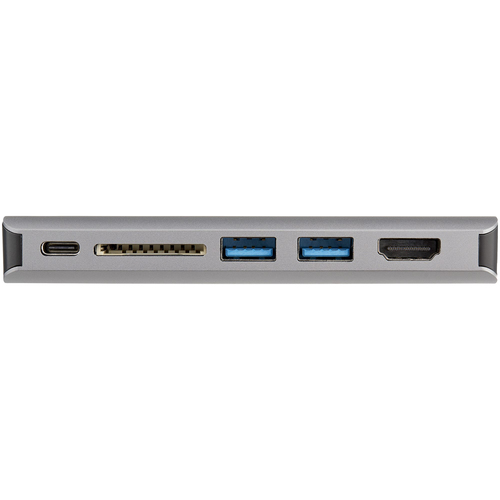

The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.

Includes Ports to Do More with SD, Audio & Gigabit Ethernet

Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:

• SD, SDHC™ and SDXC™ memory cards or microSD cards via the SD card slot

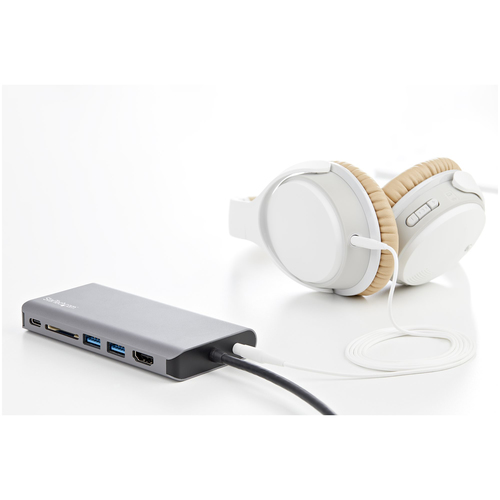

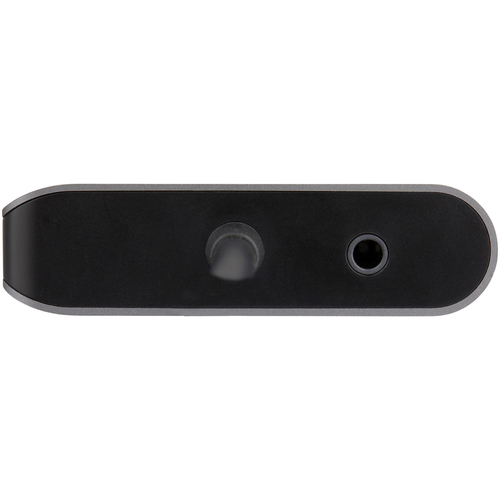

• Audio content via headphones or microphone through the 3.5mm 4- position audio port
• Ethernet network via the GbE port using a hard-wired connection

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

DKT30CHVAUSP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Manufacturer Details
Brand	StarTech.com
EAN-13	065030880244
MPN	DKT30CHVAUSP
Warranty (carry-in)	12 months
Logistics data
Harmonized System (HS) code	84733020
Master (outer) case height	440 mm
Master (outer) case length	470 mm
Master (outer) case width	335 mm
Products per master (outer) case	70 pc(s)
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 82 °C
Other features
Cable length	0.3 m
Chipset	VIA Labs - VL102, VIA Labs - VL161, VIA Labs - VL817, Genesys Logic - GL823K, ITE Tech - IT6564, Realtek - RTL8153B, Cmedia - HS100-B
Packaging content

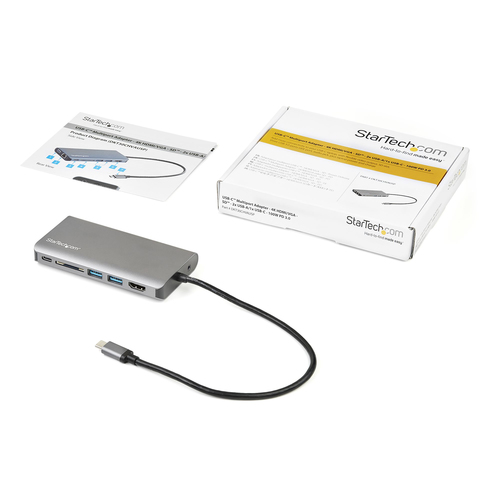

Quick start guide	Yes
Packaging data
Package depth	117 mm
Package height	30 mm
Package weight	190 g
Package width	145 mm
Performance
Card reader integrated	Yes
Certification	CE, FCC, REACH
Compatible memory cards	SD, SDHC, SDXC
Data transfer rate	5 Gbit/s
Housing material	Aluminium, Plastic
Maximum analog resolution	1920 x 1200 pixels
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black, Grey
Ports & interfaces
Combo headphone/mic port	Yes
Connectivity technology	Wired
HDMI ports quantity	1
Headphone outputs	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	1
USB Power Delivery (USB PD)	Yes
Software
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported	Android, iOS
Other operating systems supported	ChromeOS
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Technical details
Compliance certificates	RoHS
Weight & dimensions
Depth	460 mm
Height	15 mm
Weight	125 g
Width	61 mm
