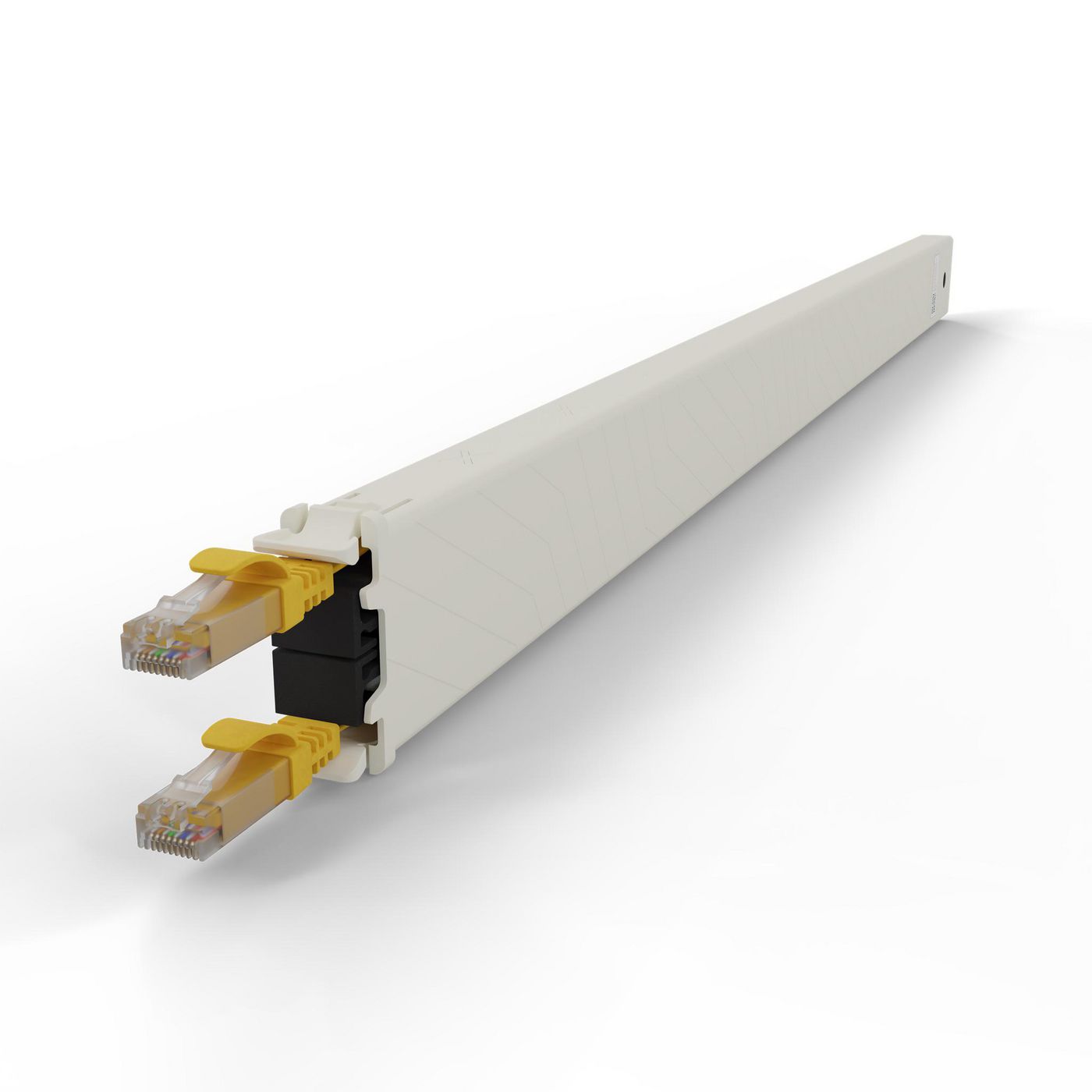

PATCHBOX .one / Cassette / 30RU / UTP / Yellow
PATCHBOX - CONE30UTPYL
The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
PATCHBOX - CONE30UTPYL
The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
| Manufacturer Details | |
| Brand | PATCHBOX |
| EAN-13 | 4262427630345 |
| MPN | CONE30UTPYL |
| OEM Part Number | C60UTPXC6AXX1Y |
| Warranty (carry-in) | 120 months |
| Certificates | |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Features | |
| AWG wire size | 30 |
| Bend radius (min) | 1.2 cm |
| Cable length | 1.8 m |
| Cable shape | Flat |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6a |
| Conductor material | Copper |
| Connector 1 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Country of origin | Hungary |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Networking standards | IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Product colour | Yellow |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
| Cables included | LAN (RJ-45) |
| Packaging content | |
| Packaging content | 1 x patchbox.one / Cassette / 30RU / UTP / Yellow |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package depth | 40 mm |
| Package height | 18 mm |
| Package weight | 280 g |
| Package width | 668 mm |
| Weight & dimensions | |
| Depth | 40 mm |
| Height | 18 mm |
| Weight | 200 g |
| Width | 600 mm |
| Manufacturer Details | |
| Brand | PATCHBOX |
| EAN-13 | 4262427630345 |
| MPN | CONE30UTPYL |
| OEM Part Number | C60UTPXC6AXX1Y |
| Warranty (carry-in) | 120 months |
| Certificates | |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Features | |
| AWG wire size | 30 |
| Bend radius (min) | 1.2 cm |
| Cable length | 1.8 m |
| Cable shape | Flat |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6a |
| Conductor material | Copper |
| Connector 1 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Country of origin | Hungary |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Networking standards | IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Product colour | Yellow |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
| Cables included | LAN (RJ-45) |
| Packaging content | |
| Packaging content | 1 x patchbox.one / Cassette / 30RU / UTP / Yellow |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package depth | 40 mm |
| Package height | 18 mm |
| Package weight | 280 g |
| Package width | 668 mm |
| Weight & dimensions | |
| Depth | 40 mm |
| Height | 18 mm |
| Weight | 200 g |
| Width | 600 mm |
PATCHBOX Cassette / 30RU / UTP / Yellow (CONE30UTPYL)
-
€18,60
