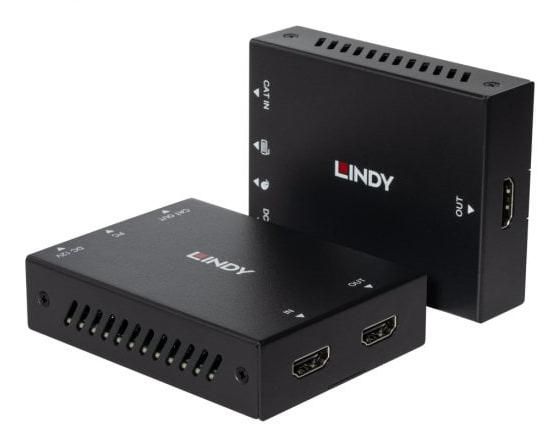

Lindy 39350 KVM extender Transmitter & receiver

Lindy - 39350

The Lindy Cat.6 HDMI® & USB KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable.

Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls. The transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.

The extender features an HDMI® loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays.

PoC (Power over Cable) functionality provides additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the two units, meaning only a single power supply is required at the transmitter or receiver unit.

Please note that when the PSU is connected to the transmitter to enable the PoC function, the maximum supported distance is 30m for the USB signal and 100m for the video signal; when the PSU is connected to the receiver, the maximum supported distance remains 100m for both USB and video signals.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.

Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufacturer Details
Brand	Lindy
EAN-13	4002888393508
MPN	39350
Warranty (carry-in)	24 months
Features
Cable types supported	Cat6
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Connectivity technology	Wired
Material	Metal
Maximum digital resolution	1920 x 1080 pixels
Maximum refresh rate	60 Hz
Maximum transfer distance	100 m
Product colour	Black
Type	Transmitter & receiver
Operational conditions
Operating relative humidity (H-H)	-20 - 80%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Bandwidth	4.95 Gbit/s
HDCP	Yes
HDCP version	1.4
Extended display identification data (EDID)	Yes
Packaging content
AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Manual	Yes
Quick installation guide	Yes
Screws included	Yes
Packaging data
Package depth	135 mm
Package height	75 mm
Package weight	720 g
Package width	215 mm
Power
AC adapter output current	1 A
AC adapter output voltage	12 V
DC-in jack	Yes
Receiver
Receiver local keyboard/mouse port type	USB
Receiver local video port type	HDMI
Receiver local video ports quantity	1
Receiver USB Type-A ports quantity	2
RJ-45 ports quantity (receiver)	1
Sustainability
Sustainability certificates	Certified Enviro Cranberries (CEC)
Transmitter
Number of displays supported	1
RJ-45 ports quantity (transmitter)	1
Transmitter local keyboard/mouse port type	USB
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Transmitter video port type	HDMI
Weight & dimensions
Receiver depth	6.8 cm
Receiver height	2.2 cm
Receiver weight	550 g
Receiver width	9 cm
Transmitter depth	6.8 cm
Transmitter height	2.2 cm
Transmitter weight	550 g
Transmitter width	9 cm
