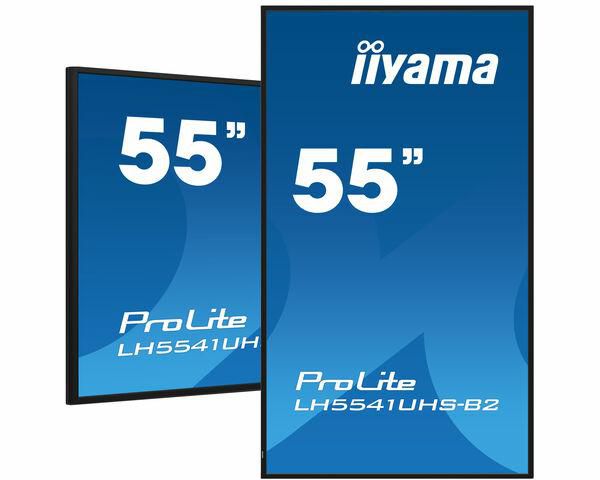

iiyama LH5541UHS-B2 Signage Display Kiosk design 138.7 cm (54.6") LCD 500 cd/m² 4K Ultra HD Black Built-in processor 24/7

iiyama - LH5541UHS-B2

Set in a slim bezel, the iiyama LH5541UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Manufacturer Details
Brand	iiyama
EAN-13	4948570123544
MPN	LH5541UHS-B2
Warranty (carry-in)	36 months
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Computer system
Built-in processor	Yes
Computer system	Yes
Internal memory	2 GB
Internal storage capacity	16 GB
Processor model	V810
Design
Bezel colour	Black
Bezel width (bottom)	1.55 cm
Bezel width (side)	1.4 cm
Bezel width (top)	1.4 cm
Orientation	Horizontal/Vertical
Panel mounting interface	400 x 400 mm
Placement supported	Indoor
Product colour	Black
Product design	Kiosk design
VESA mounting	Yes
Display
Active display area (W x H)	1209.6 x 680.4 mm
Contrast ratio (typical)	1200:1
Display brightness	500 cd/m²
Display diagonal	138.7 cm (54.6")
Display diagonal (metric)	139 cm
Display number of colours	1.07 billion colours
Display resolution	3840 x 2160 pixels
Display technology	LCD
Haze rate	1%
HD type	4K Ultra HD
Horizontal scan range	30 - 83 kHz
Native aspect ratio	16:9
Native refresh rate	60 Hz
Panel type	IPS
Pixel pitch	0.3155 x 0.3155 mm
Response time	8 ms
Touchscreen	No
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Logistics data
Harmonized System (HS) code	85285210
Network
Ethernet LAN	Yes
Wi-Fi	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Cable management	Yes
Housing material	Metal
Power supply type	Internal
Quick start guide	Yes
Packaging content
Batteries included	Yes
Cables included	AC, HDMI, RS-232
Remote control included	Yes
Packaging data
Package depth	130 mm
Package height	845 mm
Package width	1386 mm
Performance
HDCP	Yes
HDCP version	2.2
Mean time between failures (MTBF)	50000 h
Number of OSD languages	11
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days)	24/7
Purpose	Universal
Ports & interfaces
DVI port	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
PC Audio in	Yes
Remote (IR) input	1
Remote (IR) output	1
RS-232C	Yes
USB ports quantity	1
VGA (D-Sub) input ports	1
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Energy consumption (SDR) per 1000 hours	139 kWh
Energy efficiency class (HDR)	Not available
Energy efficiency class (SDR)	G
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	139 W
Technical details
Audio in (mini jack)	Yes
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Playback media	Y
Sustainability certificates	ErP
User controls	picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Weight & dimensions
Depth	55 mm
Display depth	55 mm
Display height	710 mm
Display weight	14.3 kg
Display width	1237.5 mm
Height	710 mm
Weight	14.3 kg
Width	1237.5 mm
