ATEN HDMI Over Cat5e/6 Audio/Video Extender (60m)
Aten - VE800A-AT-G

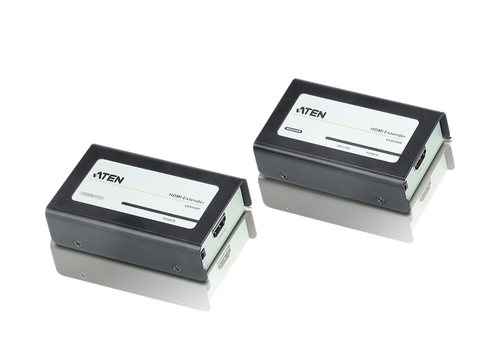

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
Aten - VE800A-AT-G
The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
| Manufacturer Details | |
| Brand | Aten |
| EAN-13 | 4719264642241 |
| MPN | VE800A-AT-G |
| OEM Part Number | 50868 |
| Warranty (carry-in) | 24 months |
| Features | |
| Bandwidth | 6.75 Gbit/s, 225 MHz |
| Cable types supported | Cat5, Cat6, Cat6a |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 3 m |
| Product colour | Black |
| Type | AV receiver |
| Logistics data | |
| Master (outer) case gross weight | 3.52 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 2.42 kg |
| Master (outer) case width | 250 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| AC adapter included | Yes |
| Packaging data | |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 644 g |
| Package width | 59 mm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | Yes |

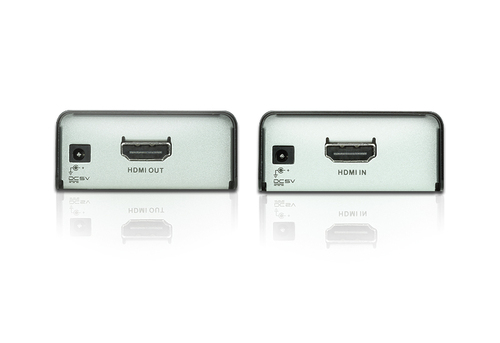

| HDMI in | 1 |
| Number of HDMI outputs | 1 |

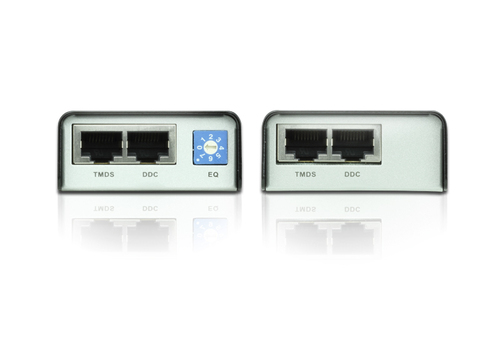

| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Weight & dimensions | |
| Depth | 90 mm |
| Height | 22 mm |
| Weight | 484 g |
| Width | 55 mm |
| Manufacturer Details | |
| Brand | Aten |
| EAN-13 | 4719264642241 |
| MPN | VE800A-AT-G |
| OEM Part Number | 50868 |
| Warranty (carry-in) | 24 months |
| Features | |
| Bandwidth | 6.75 Gbit/s, 225 MHz |
| Cable types supported | Cat5, Cat6, Cat6a |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 3 m |
| Product colour | Black |
| Type | AV receiver |
| Logistics data | |
| Master (outer) case gross weight | 3.52 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 2.42 kg |
| Master (outer) case width | 250 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| AC adapter included | Yes |
| Packaging data | |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 644 g |
| Package width | 59 mm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Weight & dimensions | |
| Depth | 90 mm |
| Height | 22 mm |
| Weight | 484 g |
| Width | 55 mm |
